Ipe Clip® EXTREME® Hidden Deck Fasteners

Invisible Hardwood Fastening Clips

Premium Grade Stainless Steel Reinforced For Air Dried Decking

Ipe Clip® Extreme® Shadowline Black front view
Ipe Clip® Extreme® Shadowline Black back view
Ipe Clip® Extreme® logo

Perfect for use with Exotic Hardwoods, Thermally Modified Softwoods, & Composite Decking

The Ipe Clip® Extreme® Hidden Deck Fastener System features a Quick & Easy installation process because all the work is done from the top-side of the deck so there is no need to stand on your head during the installation of the deck. The installation process is made even more simple because Ipe Clip® Extreme® Hidden Deck Fasteners automatically set a 3/32" [2,38 mm] gap spacing between the installed deck boards. No gap space measuring is needed when you choose Ipe Clip® Hidden Deck Fastening systems.

The reason Ipe Clip® Extreme® Hidden Deck Fasteners set a smaller gap between deck boards than Ipe Clip® ExtremeKD® Hidden Deck Fasteners is because different decking materials require different gap spacing. For example air dried decking material will tend to contract on its width more than kiln dried material so a smaller gap space between boards is required. Ipe Clip® Extreme® Hidden Deck Fasteners are installed with one side of the decking board free to contract and expand on its width as needed.

Do It Once, Do It Right, Do It Out Of Sight!™


Now Available in Extreme® Tall

The original Ipe Clip® Extreme® Hidden Deck Fastener can now be purchased in the Extreme® Tall version as well. Ipe Clip® Extreme® Tall is available in our three signature colors and features tall leg height of .375" [9,525 mm]  for 5/4 deck boards, as opposed to our orignal leg height of .242" [6,14 mm].

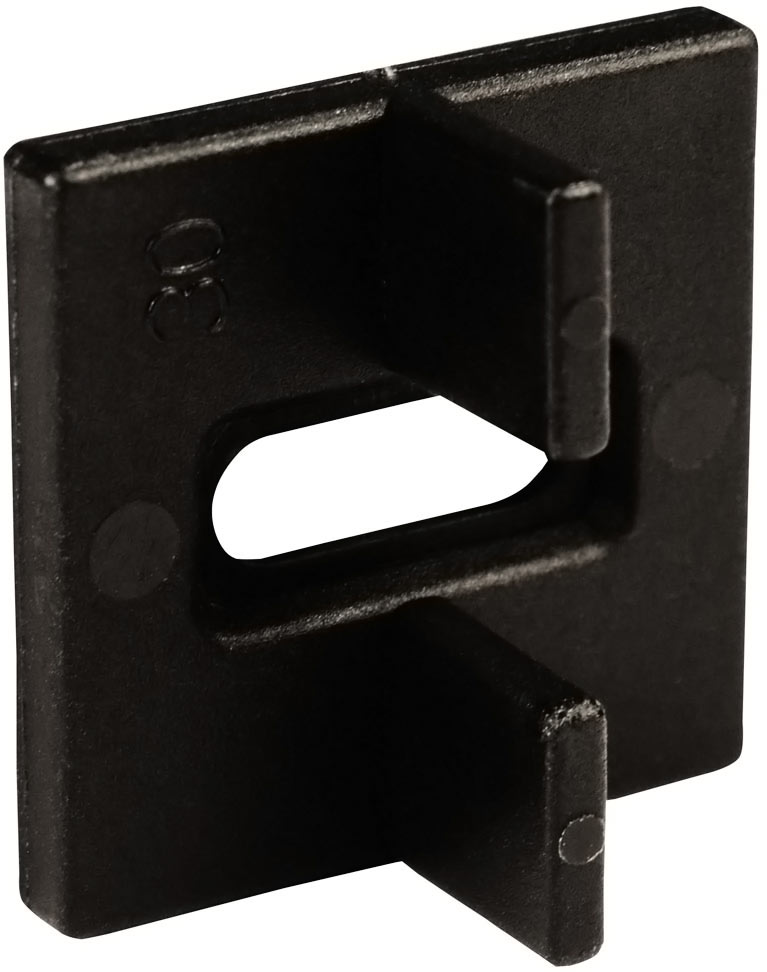

Ipe Clip® Extreme® tall Shadowline Black

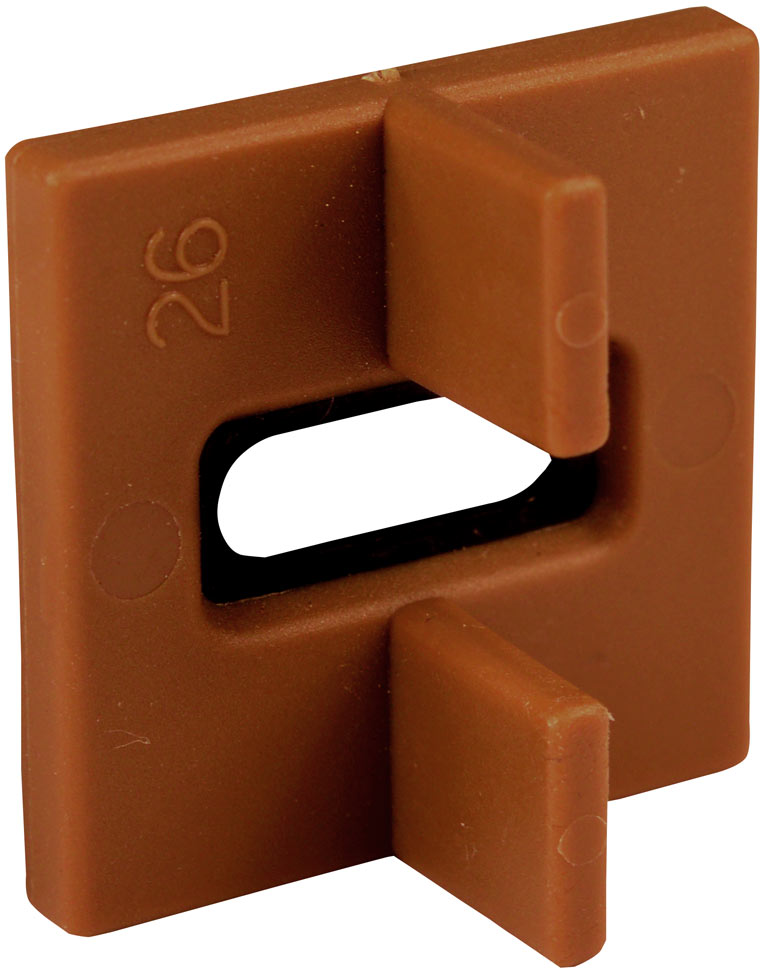

Ipe Clip® Extreme® tall Hardwood Brown

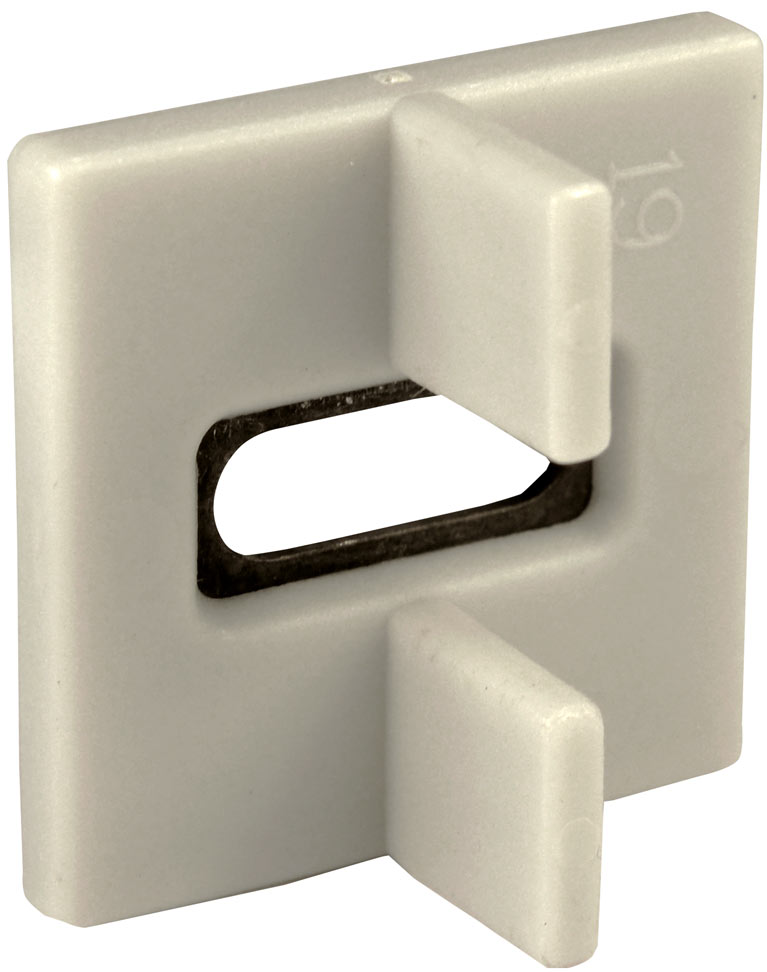

Ipe Clip® Extreme® tall Composite Grey

Ipe Clip® made in USA logo
EXTREME® Ipe Clip® Series:

U.S. Patent Numbers D485,160 and 8,464,488.
Original, “round”, STANDARD Ipe Clip® - U.S. Patent No. D470,039.


Ipe Clip® Extreme® icon

Air-Dried Lumber & Composites

Ipe Clip® Extreme® logo

Provides maximum holding strength in extreme hot or cold, humid or dry climates

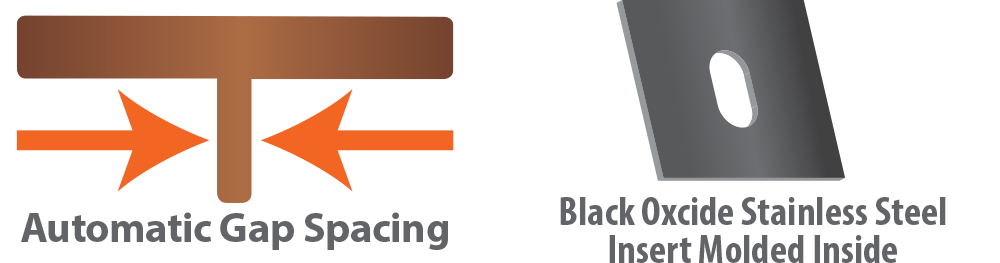

Ipe Clip® Extreme® Fastener Features

Ipe Clip® Extreme® features diagram
Gap Spacing: 3/32" [2,38 mm]
Short Leg Height: .242" [6,14 mm]
Tall Leg Height: .375" [9,525 mm]

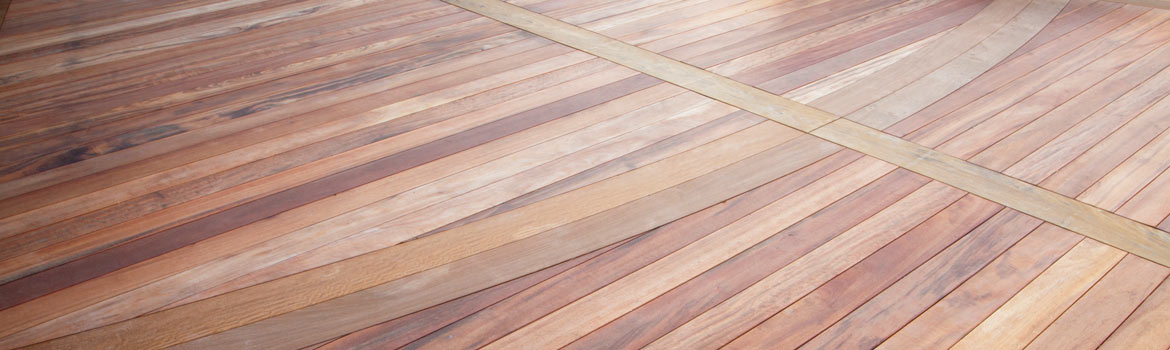

Hardwood deck built with Ipe Clip® Extreme<sup>®</sup> fasteners

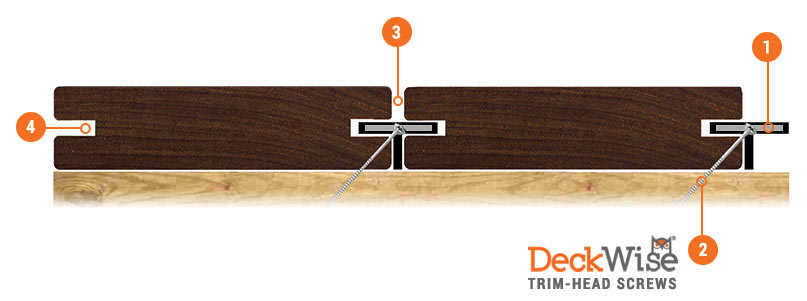

Extreme® Deck Fasteners

  1. Stainless Steel Insert
  2. Screws Driven at a 45° Angle
  3. Gap Spacing
  4. Symmetrical Profile Groove
Ipe Clip® Extreme® install overview diagram

Ipe Clip® Extreme® Advantages

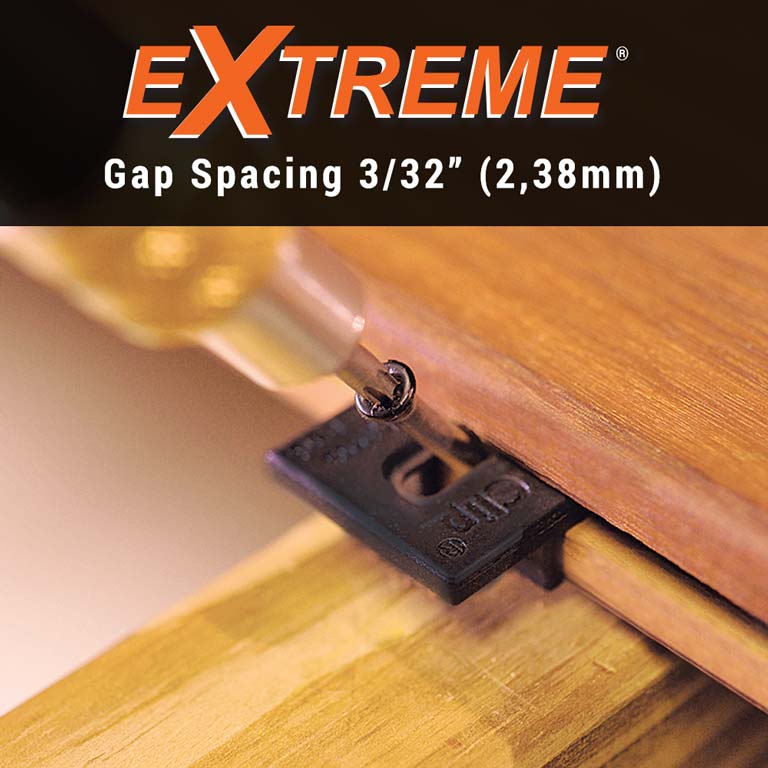

Ipe Clip® Extreme® gap spacing

Strength: Ipe Clip® fasteners are manufactured from a UV Resistant High Strength material, giving Ipe Clip® fasteners up to three times the strength of other fastening methods. By using our high strength material, Ipe Clip® fasteners have increased holding power, and help prevent screw heads from being overdriven, as can be a problem with other lesser quality fasteners.

Shape: Due to its size and shape, Ipe Clip® fasteners speed installation and eases installation problems associated with other hidden fastener methods. The smaller shape allows for approx. 1” of tolerance in the positioning of the slots cut by a biscuit jointer. Other hidden fastener methods do not allow for any tolerance in the cutting of the biscuit slots, which complicates and slows installation.

Insert: Each and every Extreme® fastener is manufactured with a hardened stainless steel, black oxide coated insert inside a rigid chemical-resistant polypropylene shell.

Legs: The Ipe Clip® Extreme® has a thinner leg which helps maintain a perfect gap spacing when materials are expanding and contracting due to varying climate conditions.

Short leg height = .242" [6,14 mm]
Tall leg height = .375" [9,525 mm]

Complete Kit Options

Ipe Clip® complete kits are available in 100 & 175 count boxes, as well as our Contractor Buckets

Complete Kit

Components

  • (175) Ipe Clip® Extreme® Hidden Deck Fasteners
  • (190) Stainless Steel T15 - Star Drive Screws
  • (12) 3/8" [9.5mm] Tapered Ipe plugs
  • (1) 1/8" [3,2mm] High Speed Drill Bit
  • (1) Screw Gun Driver Bit
  • (1) Instruction Sheet

100 Count Kit

Components

  • (100) Ipe Clip® Extreme® Hidden Deck Fasteners
  • (10) Stainless Steel T15 - Star Drive Screws
  • (1) Instruction Sheet

5 Gal. Contractor Bucket

Components

  • (1050) Ipe Clip® Extreme® Hidden Deck Fasteners
  • (1130) Stainless Steel T15 - Star Drive Screws
  • (5) 1/8" [3,2mm] High Speed Drill Bit
  • (5) Screw Gun Driver Bit
  • (1) Instruction Sheet

2 Gal. Contractor Bucket

Components

  • (525) Ipe Clip® Extreme® Hidden Deck Fasteners
  • (565) Stainless Steel T15 - Star Drive Screws
  • (5) 1/8" [3,2mm] High Speed Drill Bit
  • (3) Screw Gun Driver Bit
  • (1) Instruction Sheet

Ipe Clip® Extreme®
Extreme®
Stainless Steel Deck Screws
Stainless Steel Screws
T15 star drive screw gun tip
T15 Star Drive Tip
High speed drill bit
1/8" Drill Bit
3/8 in Hardwood Plugs
3/8" Ipe Plugs

Ipe Clip® Extreme® Product Specs

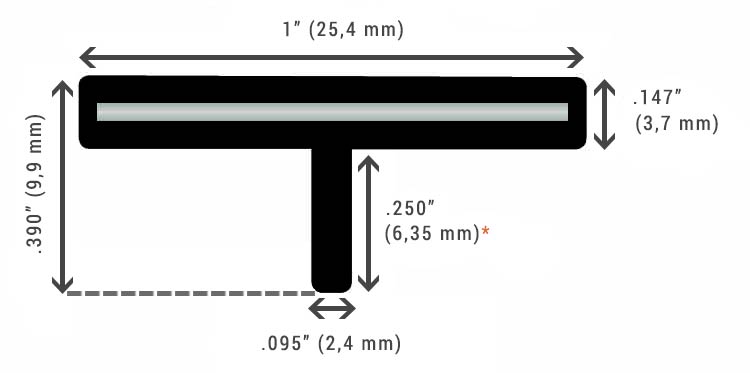

Ipe Clip® Extreme® dimension diagram
Clip Construction
Material Stainless Steel Insert Available Colors
Polypropylene/
Fiberglass
.883" x .883"
Thickness: .036"
Ipe Clip® Extreme® series
Decking Compatibility
Air Dried Kiln Dried PVC/Composite

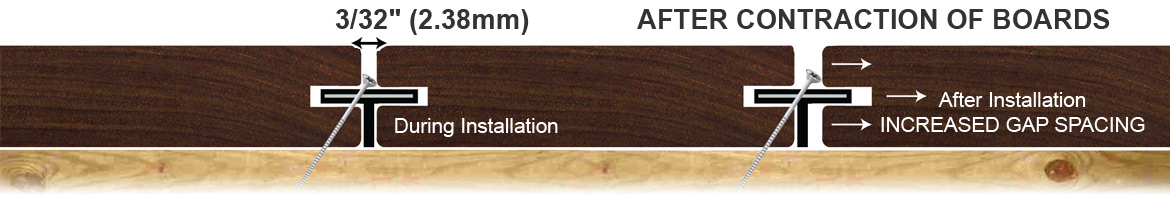

Enables Contraction on the Width of Air-Dried Decking

The method of 45 degree screws hold the decking tight to the joist, while allowing one side of the deck board to remain free to contract and expand.

Ipe Clip® Extreme® contraction diagram

Enables Expansion/Contraction Along the Length of Composite/PVC Decking

Running screws straight down with composite/PVC decking allows these materials to naturally move on their length.

Ipe Clip® Extreme® composite diagram
Ipe Clip® Extreme® composite movement diagram

Ipe Clip® Extreme® Install Specs

Ipe Clip® Extreme® install specifications diagram
Board Dimensions
Board Thickness Board Width
A* = Your Measurement B** = Your Measurement
Groove Dimensions
Thickness of Cut Cutting Height Cutting Depth
C = 5/32"(4mm) D*** = (A-5/32")/2 E = 1/2"(13mm)
Board Spacing
During Installation
F**** = 3/32" (2,38mm)

If using 1-1/2" or thicker material, you may need to upgrade to a longer screw option than what is typically packaged with the fastening kit.

** For decking 8" or wider, the (A) dimension should be at least 1-1/2". Using a wide plank such as this for surface decking will most likely cause cupping issues regardless of how the material is fastened if thicker material is not used.

*** This formula will create a symmetrical profile that allows you to flip and/or rotate the decking to be able to put the best side up.

**** Fastener automatically achieves correct gap spacing when boards are pushed tight during installation.
